Caverton Helicopters Fleet
Caverton Helicopter fleet is made up of modern, fully-equipped helicopters dedicated to Offshore support. As your requirements evolve, we regularly invest in new aircraft such as the Bell and AgustaWestland series that have recently joined our fleet. Our passion for helicopters is always at the service of your pleasure and well-being.
To guarantee maximum safety for you, our entire fleet benefits from maintenance and servicing carried out in our own workshops by teams of passionate experts.

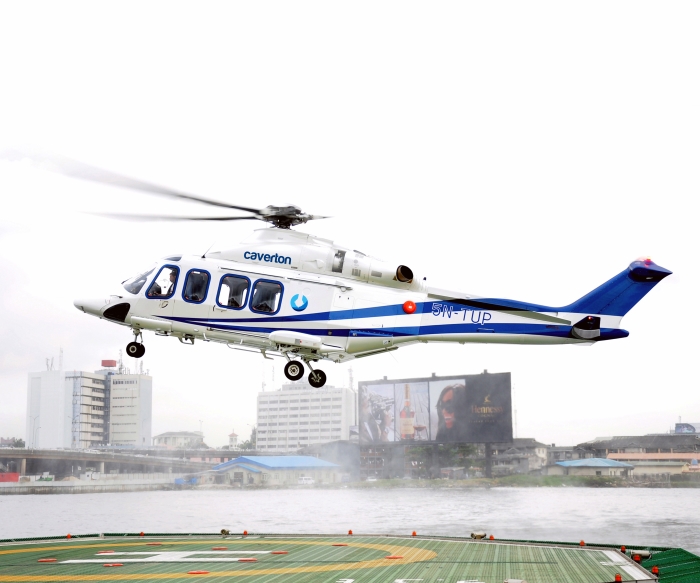

AgustaWestland AW139
Description
The AgustaWestland AW139: Designed with inherent multi-role capability and flexibility of operation, the AW139 is capable of carrying up to 15 passengers at very high speed, in a most spacious and comfortable cabin. The ample baggage compartment is accessible both from the cabin and externally. The AW139 provides the best power reserve of any helicopter in the medium twin-engine class.
The AW139 is powered by two Pratt & Whitney PT6C-67C turboshaft engines. Together with this and a state-of-the-art 5 bladed main rotor, the AW139 delivers a high cruise speed even in demanding conditions at all weights.
The AW139 is a new generation medium twin-engine helicopter offering unmatched performance, capacity and safety. It meets the most stringent civil and government certification standards, including the FAA and JAA FAR/JAR Part 29 requirements.
Caverton Helicopters is the first wholly indigenous civil helicopter company to acquire the AW139 Helicopter. Its helicopters are fully equipped and tailormade to handle the requirements of offshore support operations in Nigeria.
Specifications
| Engine | 2 × Pratt & Whitney Canada PT6C-67C Turboshaft engine |
| Capacity | Crew 1-2 + Passengers up to 12 |
| Length (m) | 16.66 in *rotors turning |
| Height (m) | 4.98 |
| Blades | 5 |
| Rotor Diameter (m) | 13.8 |
| Disc Area (m2) | 149 |
| Weight (Kgs) | Max Gross: 6400 – Increased Max Gross: 7000 |
| Cruise Speed (Km/h) | Max : 360 |
| Range (Km) | 1061 *with auxiliary fuel tank – no reserve |
| Ceiling (m) | 6096 |
| Max Endurance (Hrs) | 5 *with auxiliary fuel tank – no reserve |
| Rate of Climb (m/s) | 10.9 |

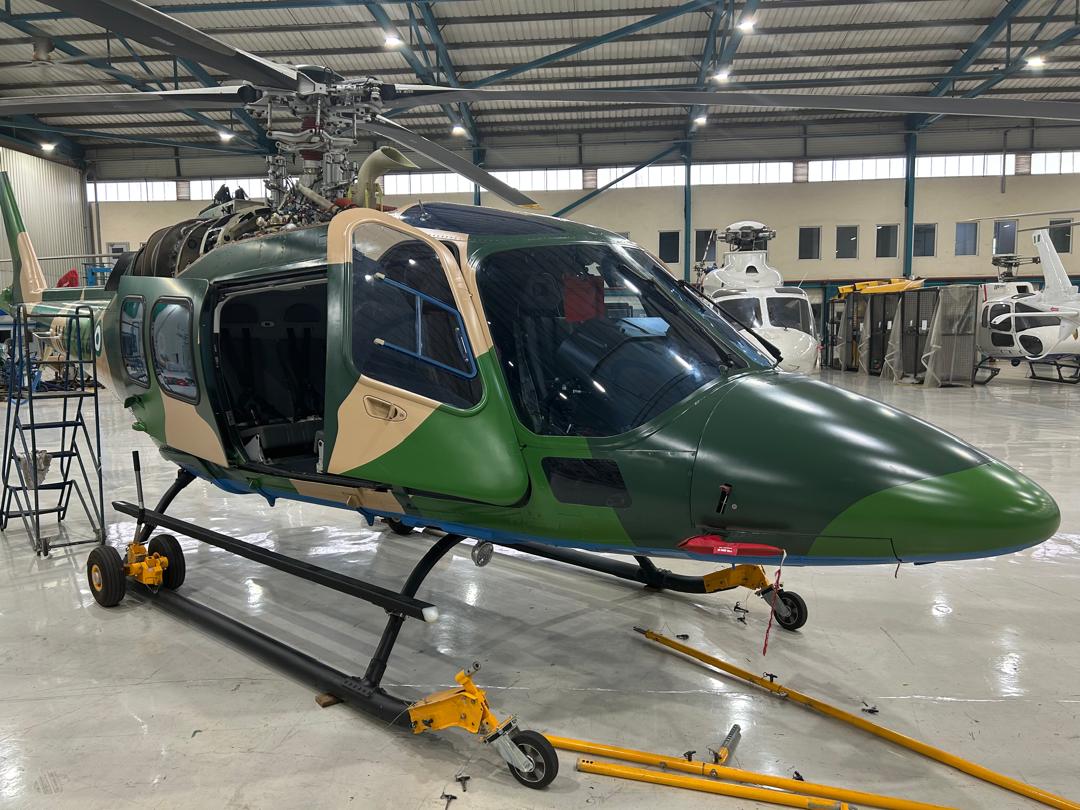

The AW109 Trekker
Description
The AW109 Trekker is the new multi-role helicopter developed to provide the perfect solution for the most challenging missions in a variety of roles. Productiveness is guaranteed by outstanding performance, payload and a wide cabin space that enables quick role changes. The helicopter is ideally suited to a wide range of missions that require best-in-class lifting capability, alongside superior range and performance.
Specifications
| WEIGHTS (MGW) | ||||
| Internal loads | 3 175 | kg | ||
| External loads | 3 350 | kg | ||
| Empty helicopter weight | 1 870 | kg | ||
| Powerplant – PW207C | ||||
| Maximum takeoff power | 2x 735 | shp | ||
| Maximum extended power | 2x 625 | shp | ||
| Transmission power | ||||
| Maximum takeoff power | 960 | shp | ||
| Maximum extended power | 900 | shp | ||
| Fuel capacity | ||||
| 3-cell fuel system | 575 | L | ||
| 4-cell fuel system | 669 | L | ||
| 5-cell fuel system | 835 | L | ||
| Crew | ||||
| Pilot/ Passengers | 1-2 /6 | |||

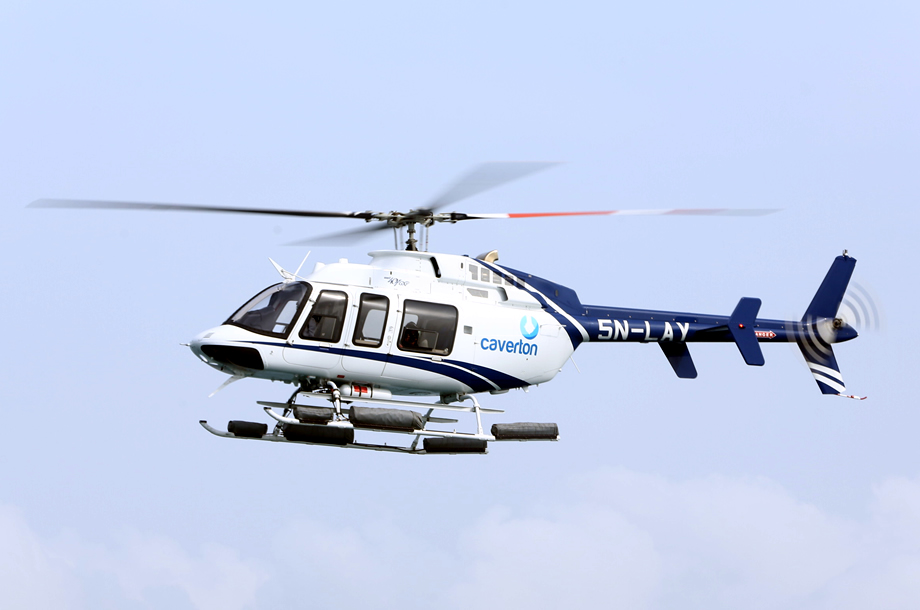

Bell 407GXP
Description
Caverton Helicopters operates a fleet of Bell 407 GXP Helicopters for off-shore logistics services.
The Bell 407GXP helicopter integrates reliability, speed, performance and maneuverability with a cabin configurable for an array of missions and payloads. It is the only helicopter equipped with the Garmin G1000HTM avionics system, which makes it the most advanced light single-engine helicopter on the market. The glass cockpit provides the crew with basic flight information, enhances their situational awareness, operational capabilities and increases safety.
Specifications
| Engine | 1 × Rolls-Royce 250-C47B/8 engine, 862 SHP/643 kW |
| Capacity | Crew 1 + Passengers up to 5 |
| Length (m) | 12.7 |
| Height (m) | 3.56 |
| Blades | 4 |
| Rotor Diameter (m) | 10.67 |
| Disc Area (m2) | 89 |
| Weight (Kgs) | Max Gross: 2722 |
| Speed (Km/h) | Max : 246 |
| Range (Km) | 598 |
| Ceiling (m) | 5698 |
| Max Endurance (Hrs) | 4 |
| Rate/Climb | 9.4 |

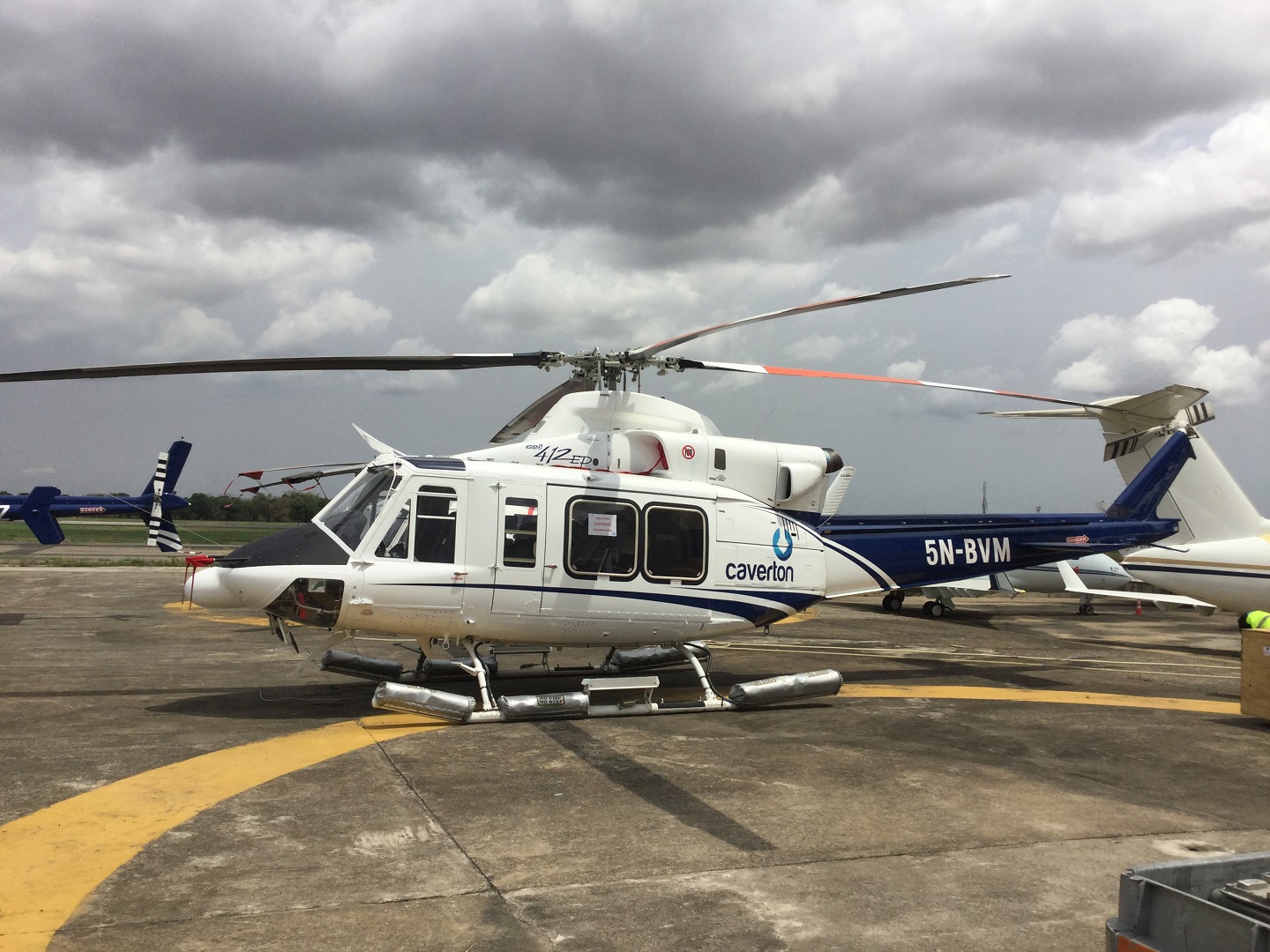

Bell Helicopters 412
Description
Caverton Helicopters operates a fleet of Bell 412 EP Helicopters for on-site and off-shore logistics services.
The Bell Helicopters 412 EP twin turbine helicopters is an advanced technology design with excellent reliability and dependability derived from the rich heritage of the Bell Huey series. These various helicopters are serving commercial needs of over 115 countries throughout the world. The latest version of the venerable series is the Bell 412EP.
Specifications
| Engine | 1 × Pratt & Whitney Canada PT6T-3DF Twin-Pac turboshafts, 900 shp (671kW) for each power section |
| Capacity | Crew 2 + Passengers up to 12 |
| Length (m) | 17.1 |
| Height (m) | 4.6 |
| Blades | 4 |
| Rotor Diameter (m) | 14 |
| Disc Area (m2) | 154.4 |
| Weight (Kgs) | Max Gross: 5397 |
| Cruise Speed (Km/h) | Max : 226 |
| Range (Km) | 980 |
| Ceiling (m) | 6096 |
| Max Endurance (Hrs) | 3.8 |
| Rate of Climb (m/s) | 6.86 |
DHC6 Twin Otter
Description
Caverton Helicopters currently operates DHC6 Twin Otter airplanes on a dedicated passenger transfer basis.
This is high-winged, unpressurized, twin-engine turboprop aircreaft is a 20-passengers STOL utility aircraft developed by de Havilland Cananda.
The DeHavilland twin other (DHC-6) is a highly maneuverable, versatile aircraft which can be flown slowly (80-160 knots/150-300 km/hr). The aircraft fixed tricycle undercarriage, STOL abilities and relatively high rate of climb have made it a successful cargo, regional passenger airliner and MEDEVAC aircraft.
Around the world in jungles, deserts, mountains, the Arctic, and anywhere where rugged reliability and short-take-off-and-landing are required, the Twin Otter is often the first choice for dependable passengers safety and confidence.
Specifications
| Engine | 2 × Pratt & Whitney Canada PT6A-34 Turboprop, 559 kW (750 hp) |
| Capacity | Crew 2 + Passengers up to 19 |
| Length (m) | 15.77 |
| Height (m) | 5.94 |
| Wing Span (m) | 19.81 |
| Wing Area (m2) | 39 |
| Weight (Kgs) | Max Gross: 5670 |
| Cruise Speed (Km/h) | Max : 337 |
| Ferry Range (Km) | 1480 |
| Ceiling (m) | 7620 |
| Max Endurance (Hrs) | 6.94 |
| Rate of Climb (m/s) | 8.1 |

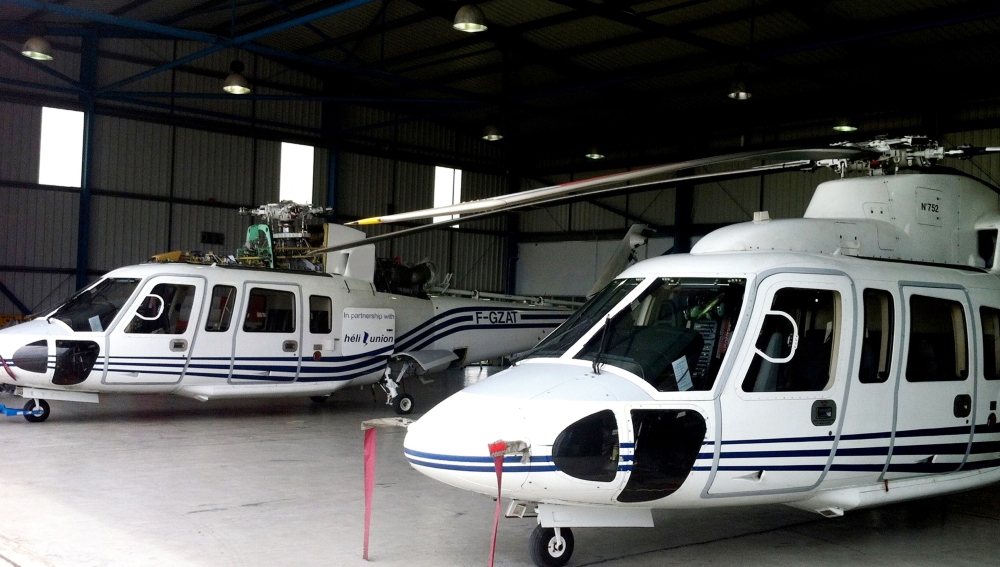

S-76C Sikorsky Series
Description
The S-76C series has been improved to meet the needs of today’s operators and the rigors of the demanding offshore oil support mission.
It incorporates technological advances that deliver enhanced safety and reliable performance day after day, mission after missiom. The S-76C++ helicopters features modern technology enhancements, including more powerful engines, along with important safety features and improvements.
Specifications
| Engine | 2 × Turbomeca Arriel 2S2 turboshaft, 922 shp (688 kW) each |
| Capacity | Crew 2 + Passengers up to 12 |
| Length (m) | 16 |
| Height (m) | 4.42 |
| Blades | 4 |
| Rotor Diameter (m) | 13.41 |
| Disc Area (m2) | 141.2 |
| Weight (Kgs) | Max Gross: 5307 |
| Cruise Speed (Km/h) | Max : 287 |
| Range (Km) | 761 |
| Ceiling (m) | 4200 |
| Max Endurance (Hrs) | 2.1 |
| Rate of Climb (m/s) | 9.14 |

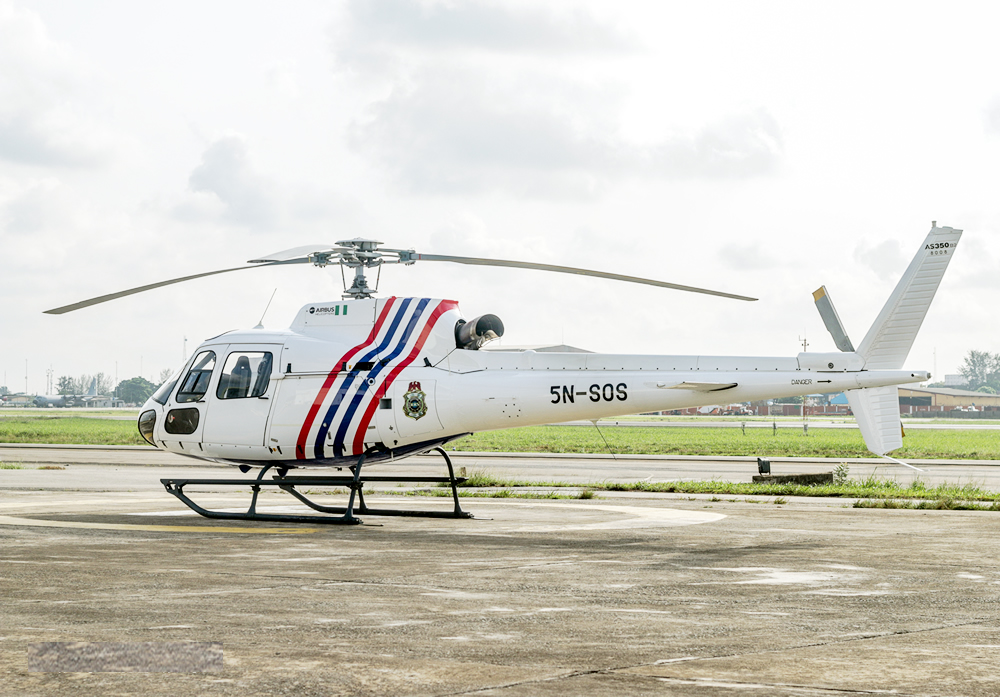

The H125 AStar
Description
The H125 AStar is a single-engine workhorse with the best performance in its category. Built and certified in the United States, this cost-effective helicopter accommodates five to six passengers in all forward-facing seats. High performance, enhanced maneuverability and reduced pilot workload make Airbus Helicopters, Inc.’s H125 the preferred rotary-wing aircraft for a growing number of U.S. civilian users, air medical services and law enforcement agencies. The H125 offers fast cruise speeds, 30 minute take-off power, long engine TBOs (6,000 hours mature) and low DMCs.
Specifications
| Engine | 1 X Turbomeca Arriel 1D1 Turboshaft. 632Kw (847 shp) |
| Capacity | Crew 1-2 + passengers up to 5 |
| Length (m) | 10.93 |
| Height (m) | 3.14 |
| Blades | 3 |
| Rotor Diameter (m) | 10.7 |
| Disc Area (m2) | 89.75 |
| Weight (Kgs) | Max gross : 2250 |
| Cruise Speed (Km/h) | Max 245 |
| Range (Km) | 662 |
| Ceiling (m) | 4600 |
| Max Endurance (Hrs) | 4.1 |
| Rate/Climb | 8.5 |
